Workbeams patented fixtures deliver unprecedented sports white light. Our single-glass optic Workbeams 1500 is equipped with LEDs rated for 120,000+ hours of operation.

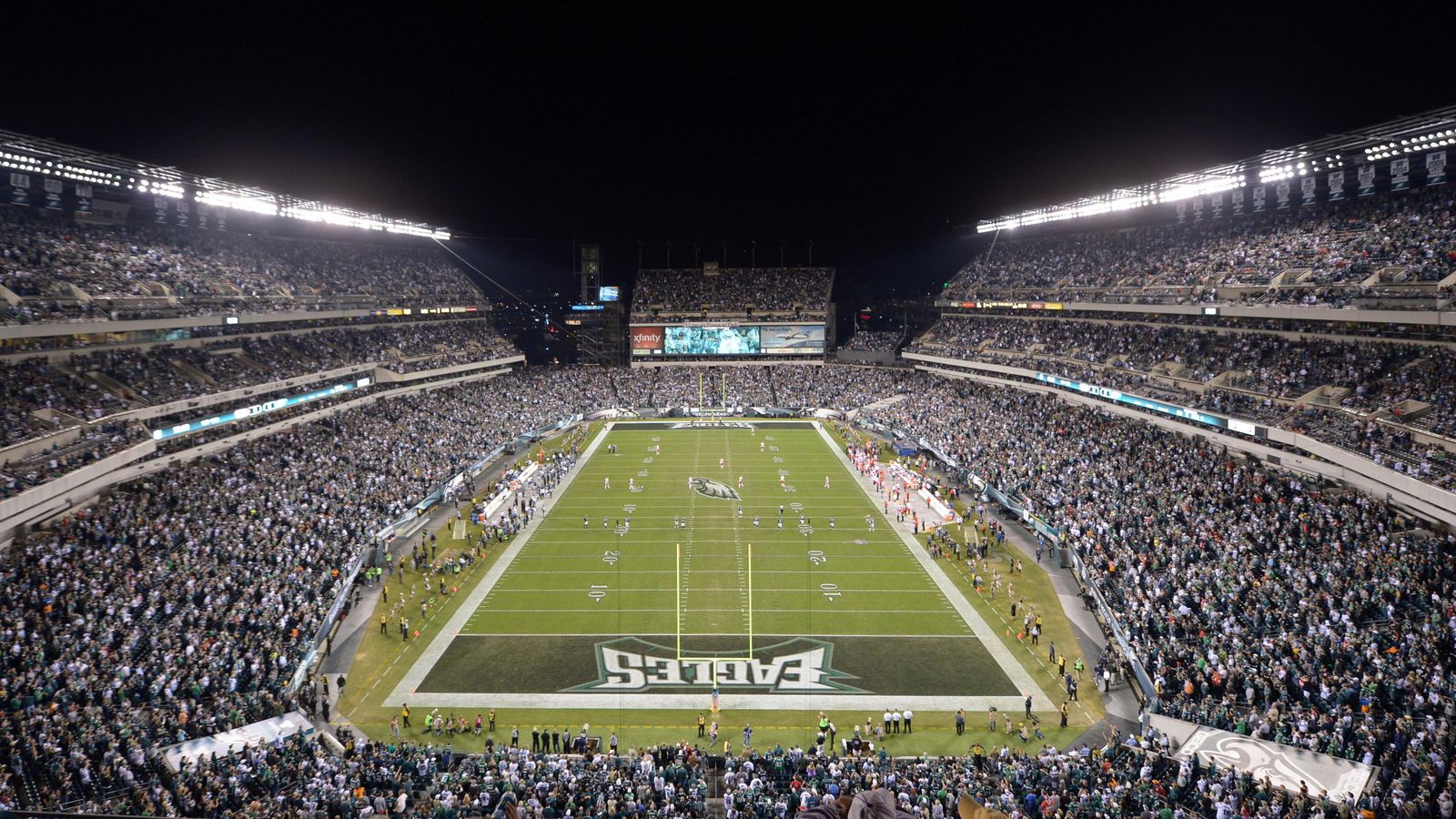

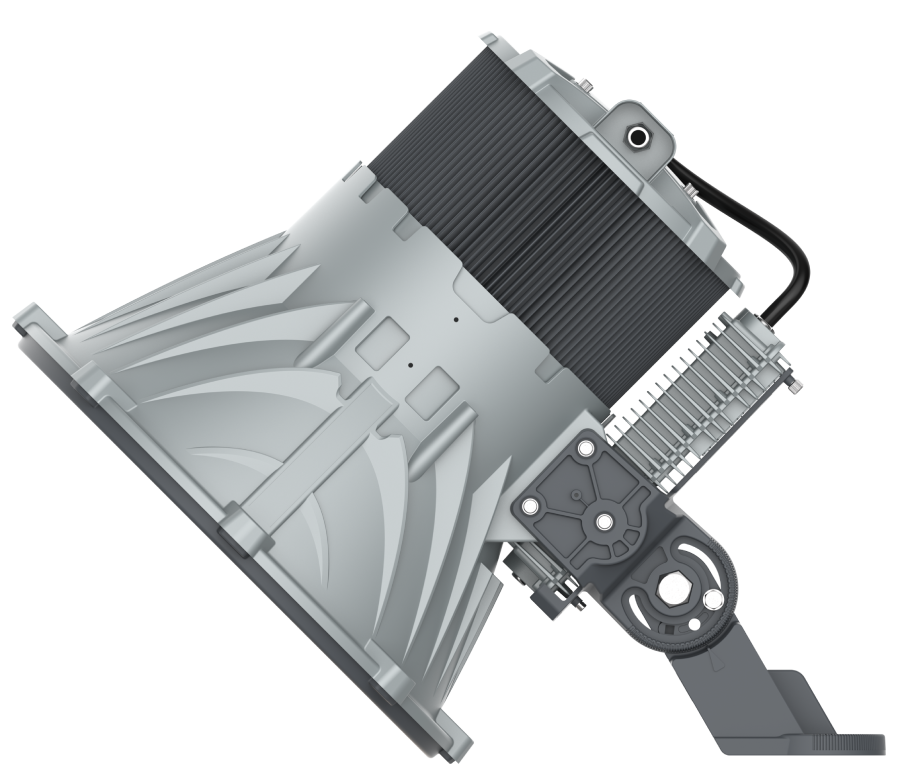

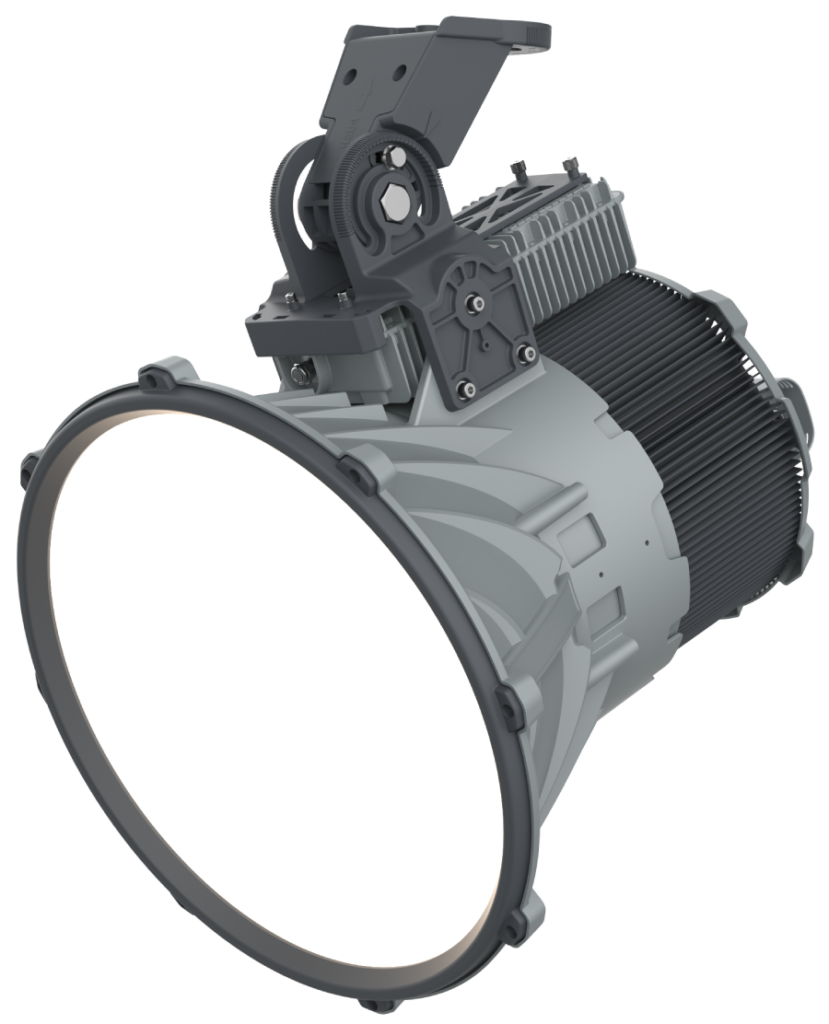

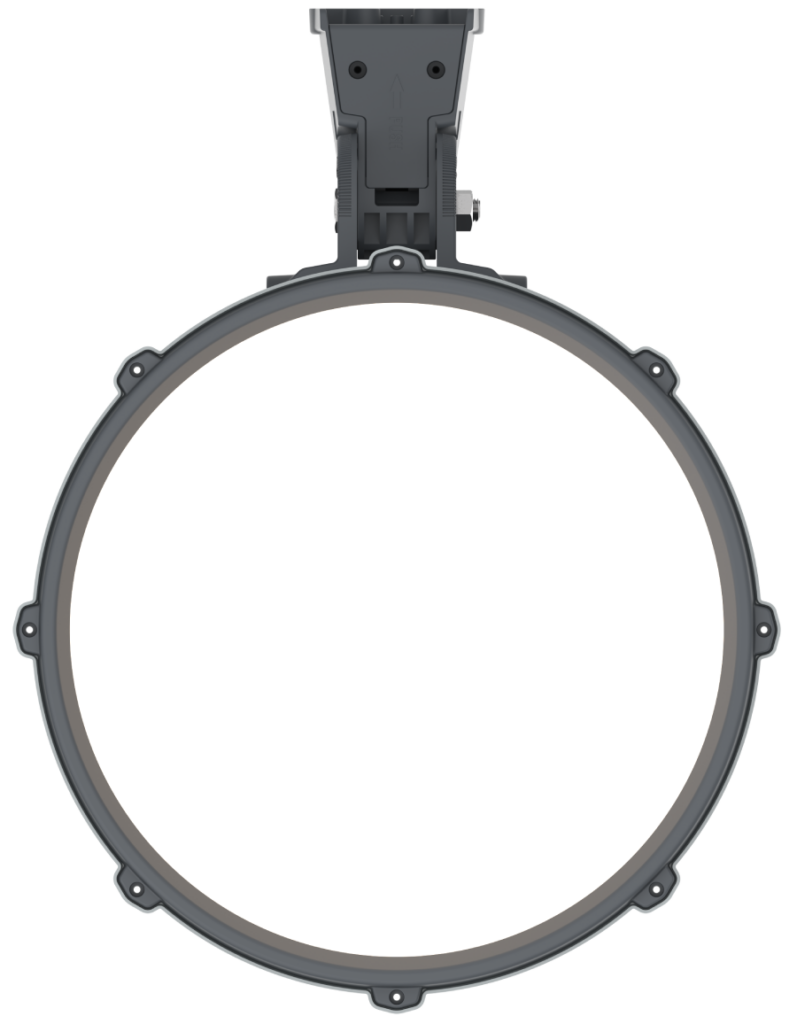

Meet the Workbeams LED 1500, a luminary titan specifically crafted for expansive environments, serving both large-scale and small-scale events. Part of our Monobeam series, this fixture emits a potent, crisp white light, ideal for those seeking unadulterated illumination and cost-effectiveness. It’s the preferred choice for work spaces requiring clear, sharp lighting without the need for excessive color options. The Workbeams LED 1500 ensures that every detail is visible, offering workers and spectators a superior visual experience. This model symbolizes our commitment to delivering high-quality, efficient, and economical lighting solutions to large-scale projects worldwide.
| LIGHT & OPTICS | |
| LUMEN OUTPUT RANGE | 121271 ~ 167977 |
| LUMEN-TO-WATT RANGE | 92 ~ 124 LM/W |
| CRI/TLC OPTIONS | 75/75, 80/75, 90/85 |
| CCT OPTIONS | 2200K ~ 6000K |
| NEMA OPTIONS | 3/4/5/6/7 |
| ELECTRICAL | |
| SYSTEM POWER | 1410W |
| FREQUENCY RANGE | 45~66 Hz |
| INPUT VOLTAGE | 277V ~ 500V |
| DC VOLTAGE | 51V |
| CURRENT RANGE | 5.8A |
| POWER FACTOR | 0.9 @ 277V |
| THD | <15% |
| INRUSH CURRENT | <80A |
| ELECTRICAL CERTIFICATIONS | FCC, CE, ETL, IK-08, CB, KC, UL 924 |
| SURGE PROTECTION | L-N 5.5kV ~ L-N-PE 10kV |
| OVER TEMPERATURE PROTECTION | AUTOMATIC RECOVERY |
| OVER VOLTAGE PROTECTION | RECOVERY AFTER POWER CYCLE |
| OVER LOAD PROTECTION | AUTOMATIC RECOVERY |
| CONSTRUCTION | |
| OPERATING TEMPERATURE RANGE | -50°C TO +50°C |
| USAGE ENVIRONMENTS | INDOOR, OUTDOOR |

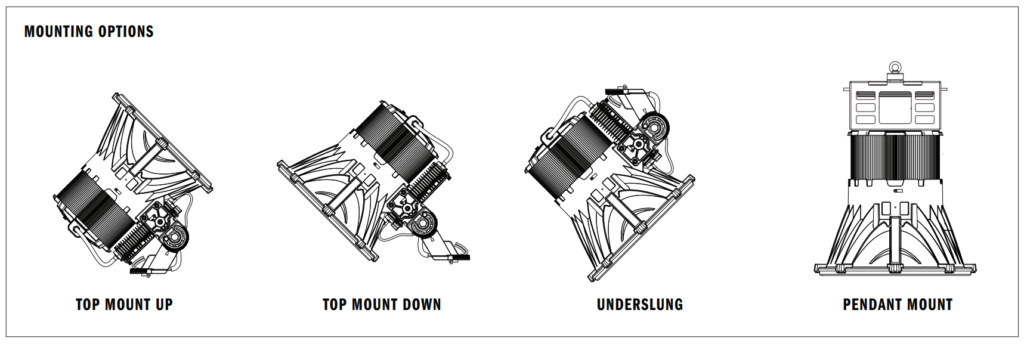

| MOUNTING OPTIONS | PEDESTAL, PENDANT |
| ENVIRONMENTAL CERTIFICATIONS | RoHS, FCC, SALT SPRAY (MIL-STD-810) |
| EFFECTIVE PROJECTED AREA (EPA) | 3.59(ft) WITH OR WITHOUT VISOR |
| APPROXIMATE WEIGHT | 75 LBS |
| NOTES: | |
|
(1) Specifications are subject to change without notice (2) Values are +/- 5% |
(3) Values are +/- 4% when fixture is operated at 25°C ambient
(4) Weight may vary depending on mounting bracket |
