WORKBEAMS LED 500

TOUGH | SIMPLE | EFFICIENT

500W LED illumination
66,000+ lumens delivered
Glare reduction technology
70 CRI – 90+ CRI
Built-in temperature protection
Zero Plastic Weatherproof Technology

GLASS SINGLE OPTIC LED

Workbeams adopts a methodology of closely assembling bare LEDs, bypassing the need for plastic lenses. This approach nullifies glare and obstructs the emergence of disparate color dots.

CUSTOM ALUMINUM DIE-CAST HOUSING

Every light we offer is shielded in robust, full aluminum die-cast housing and has been meticulously laboratory-verified to withstand diverse weather conditions, ensuring enduring performance.

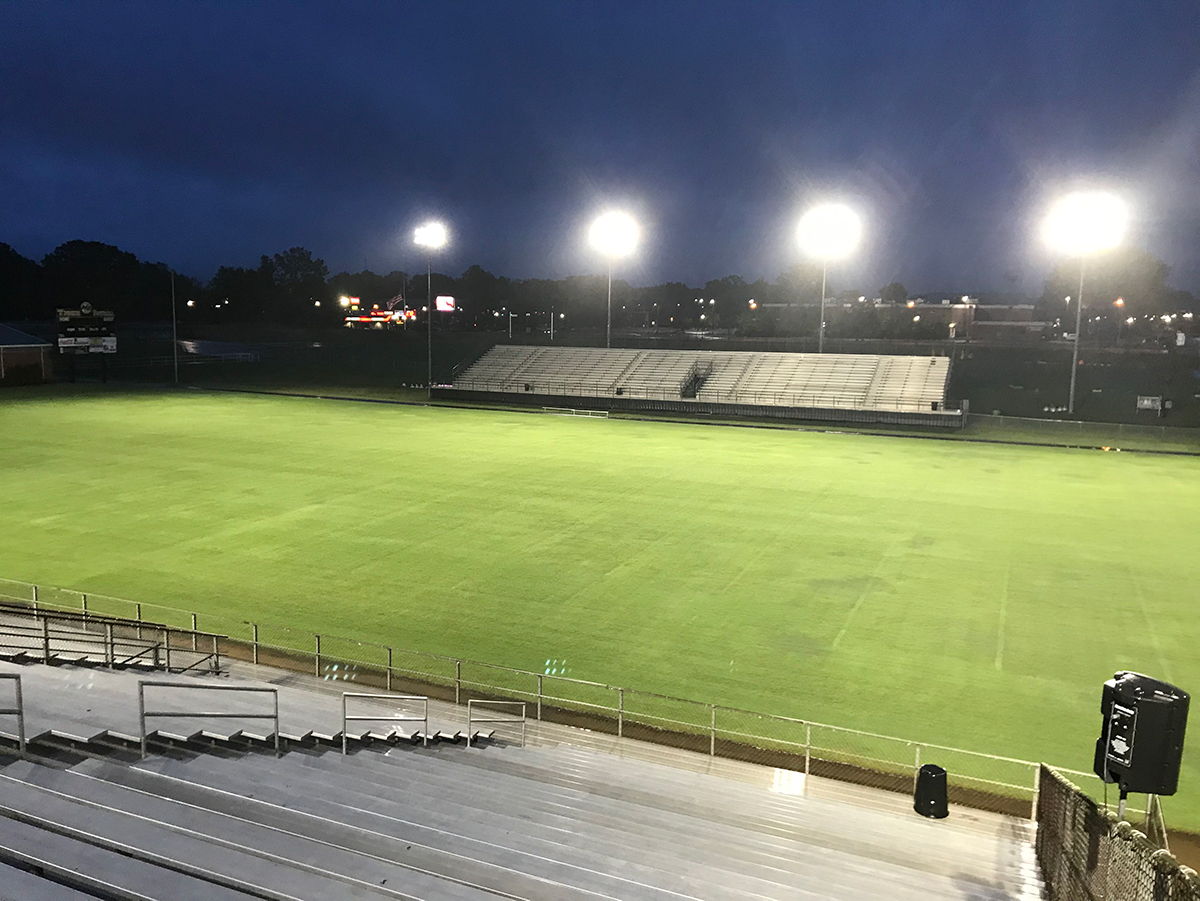

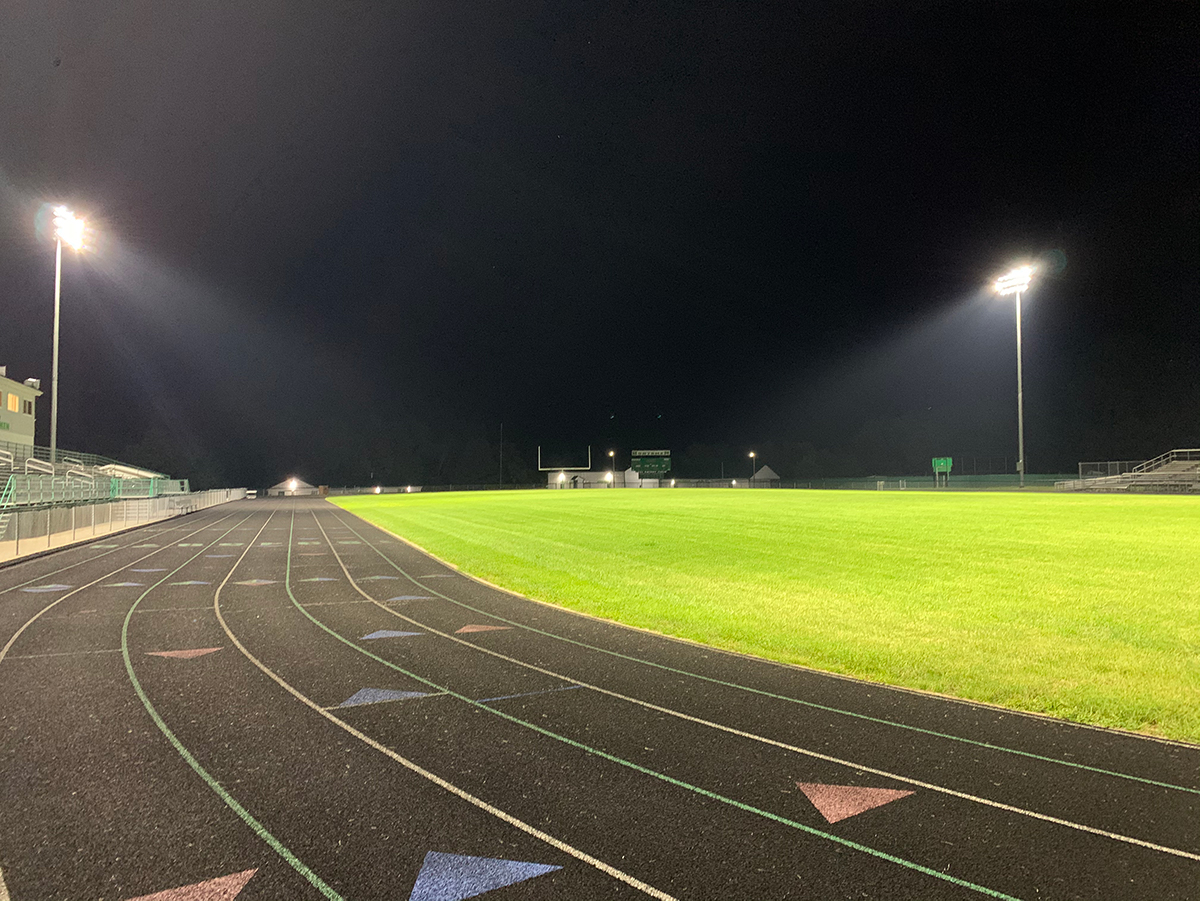

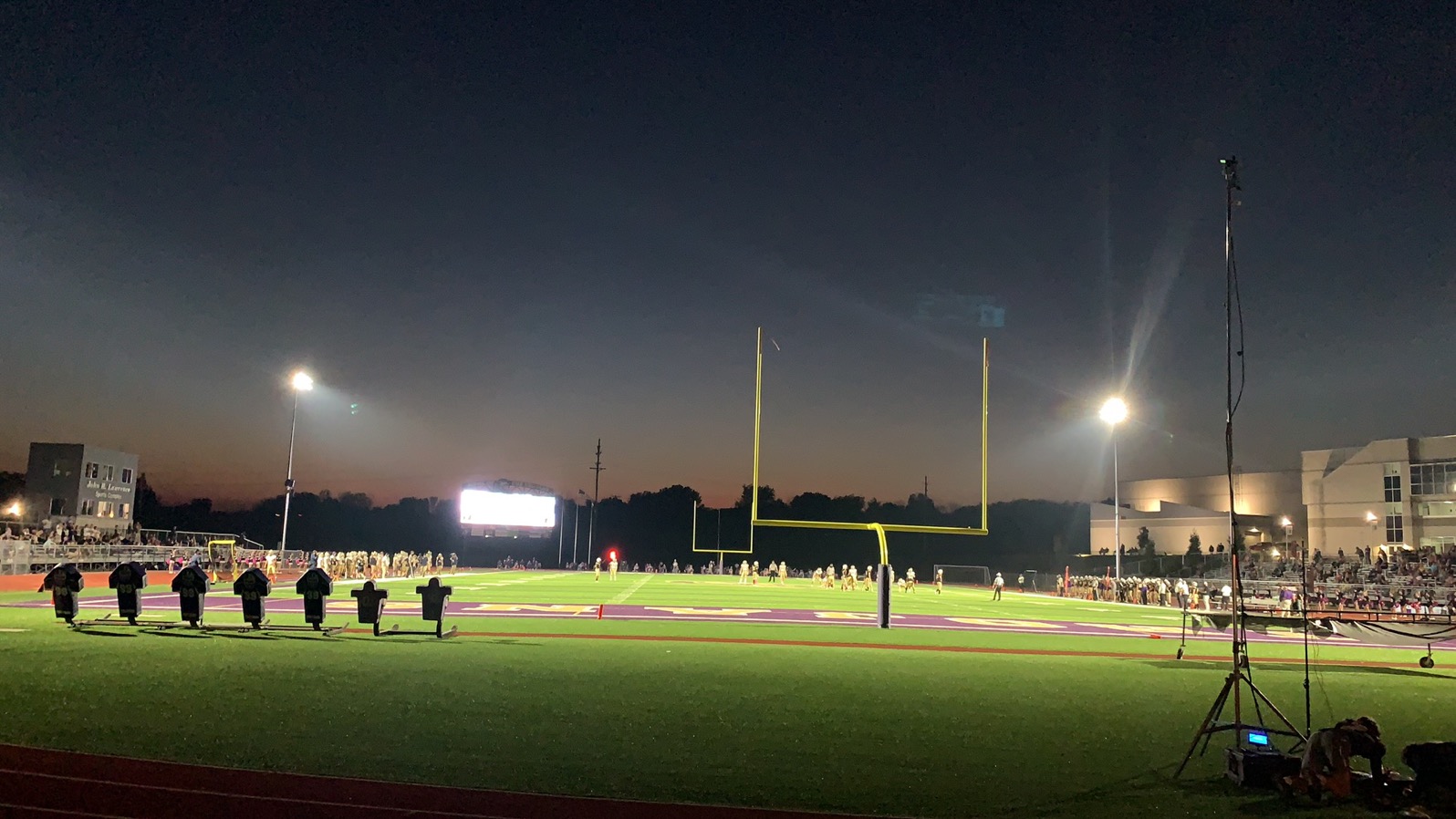

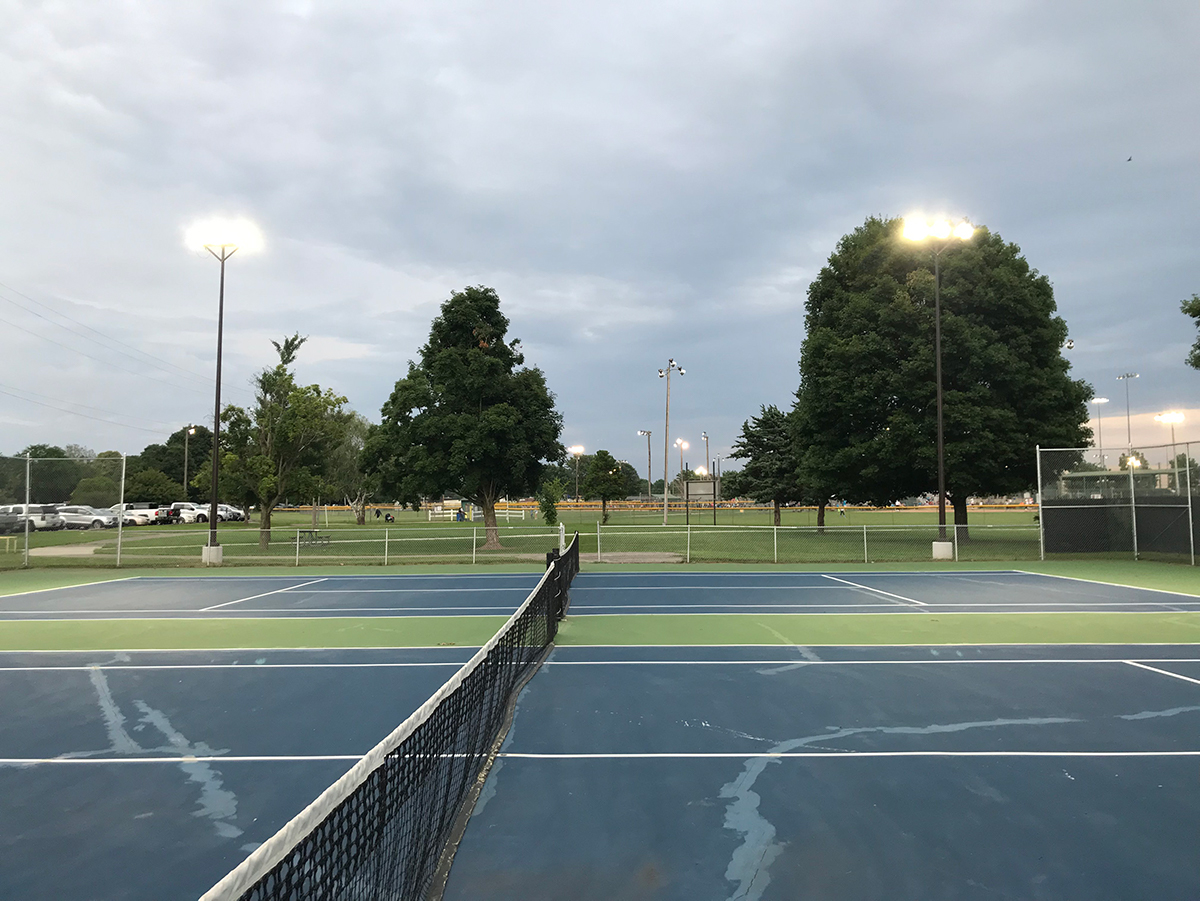

LIGHT UP YOUR OUTDOOR FIELD & STADIUMS WITH OUR LED INDUSTRIAL LIGHTING

Discover unparalleled luminosity with the Field LED 600, our dedicated solution for extensive outdoor environments like fields and stadiums. As part of the Monobeam series, it radiates a powerful, pure white light, ideal for patrons with a preference for traditional, unaltered brilliance. Whether it’s casting light over a spacious football field or highlighting the contours of an athletic track, the Field LED 600 delivers unmatched visibility, making every action crystal clear. The high LED number signifies its enhanced power, proficient in illuminating large areas with unwavering clarity, essential for optimal sports viewing and playing. This model exemplifies a harmonious blend of strength, refinement, and superior lighting, showcasing our commitment to providing innovative and visually satisfying lighting experiences in every sporting endeavor.

TYPICAL APPLICATIONS:

Indoor Arenas
Bowl Lighting
Stadium Egress Lighting
Gymnasiums
Auditoriums
Municipal Sports Fields
Indoor Facilities
High Mast
And More

COLOR TUNABLE
WHITE

GLARE-FREE

BROADCAST
QUALITY

NO PLASTIC
LENSES

OPTIMAL THERMAL
DESIGN

ADVANCED
INTELLIGENCE

TECHNICAL SPECIFICATIONS

WORKBEAMS LED 500

-                                        LIGHT & OPTICS
-                                        LUMEN OUTPUT RANGE
+,120 ~ 66,300
-                                        LUMEN-TO-WATT RANGE
+~ 132 LM/W
-                                        CRI/TLC OPTIONS
+80 OPTION
-                                        CCT OPTIONS
+K ~ 5700K OPTION
-                                        NEMA OPTIONS
+                                        H7V5
-                                        ELECTRICAL
-                                        SYSTEM POWER
+W
-                                        FREQUENCY RANGE
+~63 Hz
-                                        INPUT VOLTAGE (LOW VOLTAGE)
+V ~ 305V
-                                        DC VOLTAGE
+V
-                                        INPUT RANGE
+.2A MAX
-                                        POWER FACTOR
+.95 @ 115V / 0.94 @ 277V
-                                        THD
+                                        <20%
-                                        INRUSH CURRENT
+                                        <60A
-                                        ELECTRICAL CERTIFICATIONS
+                                        FCC, CQC, ETL, IK08, CB, KC, UL 924
-                                        SURGE PROTECTION
+                                        L-L 6kV ~ L-PE 6kV
-                                        OVER TEMPERATURE PROTECTION
+                                        AUTOMATIC RECOVERY
-                                        OVER VOLTAGE PROTECTION
+                                        RECOVERY AFTER POWER CYCLE
-                                        OVER LOAD PROTECTION
+                                        AUTOMATIC RECOVERY
-                                        CONSTRUCTION
-                                        OPERATING TEMPERATURE RANGE
+                                        -40°C TO +40°C
-                                        USAGE ENVIRONMENTS
+                                        INDOOR, OUTDOOR

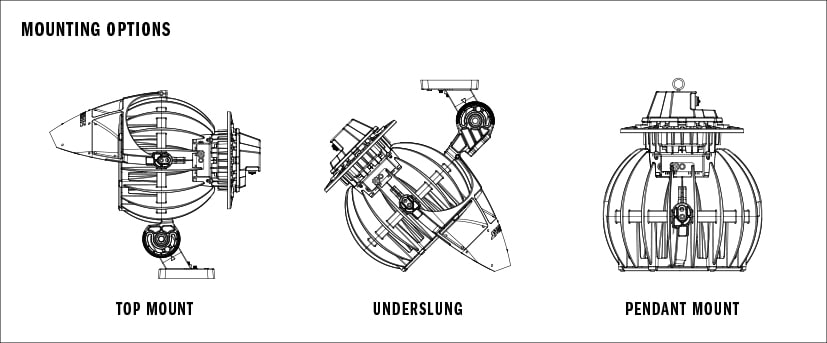

-                                        MOUNTING OPTIONS
+                                        PEDESTAL, DIRECT POLE MOUNT
-                                        ENVIRONMENTAL CERTIFICATIONS
+                                        R0HS, FCC, SALT SPRAY (MIL-STD-810)
-                                        VIBRATION
+                                        ANSI C136.31-2010 3G
-                                        EFFECTIVE PROJECTED AREA (EPA)
+                                        .45 WITH OR WITHOUT VISOR
-                                        APPROXIMATE WEIGHT
+LBS
-                                        NOTES:
-                                        (1) Specifications are subject to change without notice

(2) Values are +/- 5%
+                                        (3) Values are +/- 4% when fixture is operated at 25°C ambient

(4) Weight may vary depending on mounting bracket

^{This fixture is covered by one or more of the certifications listed}
